Electro-Welded Panel
- Woven in rectangular or square form, electro welded in each union and produced with galvanized wire.
- With a great variety of dimensions, wire diameters and openings.
APPLICATIONS
- - Wide range of applications in cages, fencing, barnyards, etc.
- - Extensive use in doors, grids, and useful for dividing sections.
- - For the livestock and agriculture industry.
ADVANTAGES
- - Variety of openings and dimensions for specialized application according to the requirement.
- - Durable and highly resistant material.
- - Economical compared to its alternatives (cement, wood, profiles, etc.).

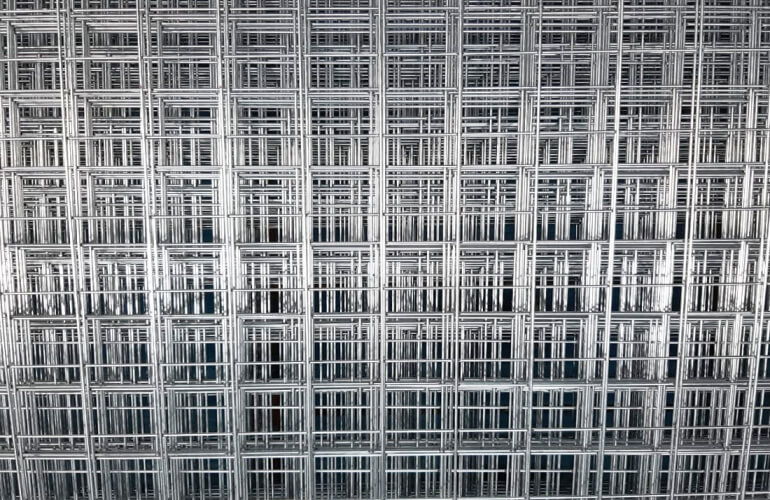

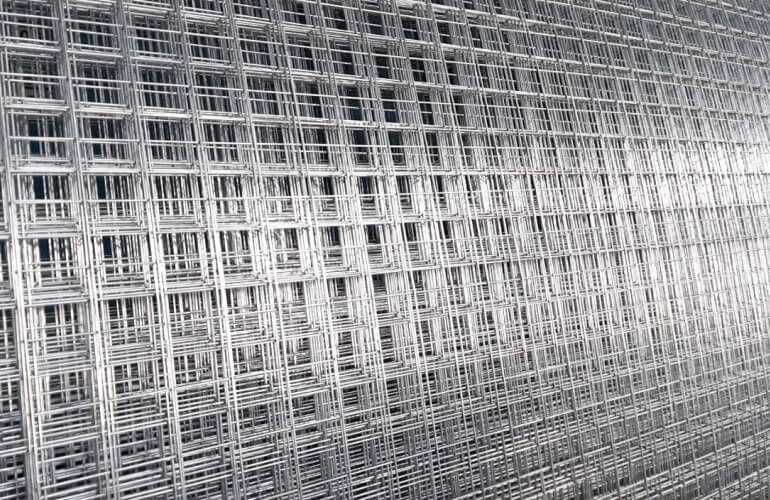

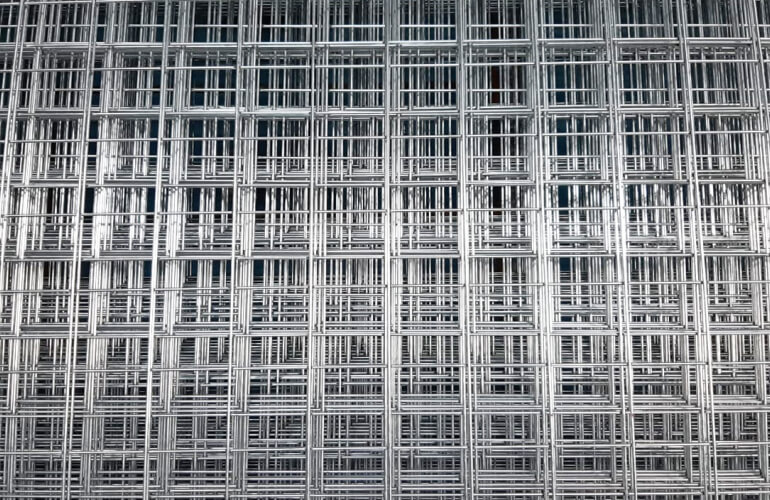

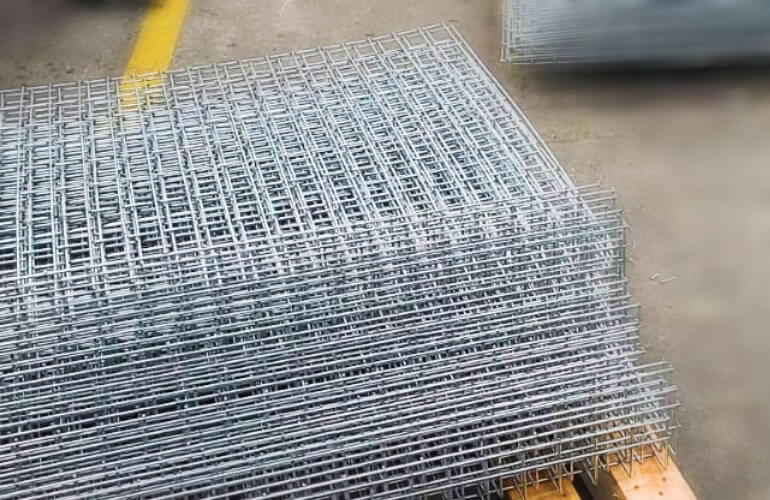

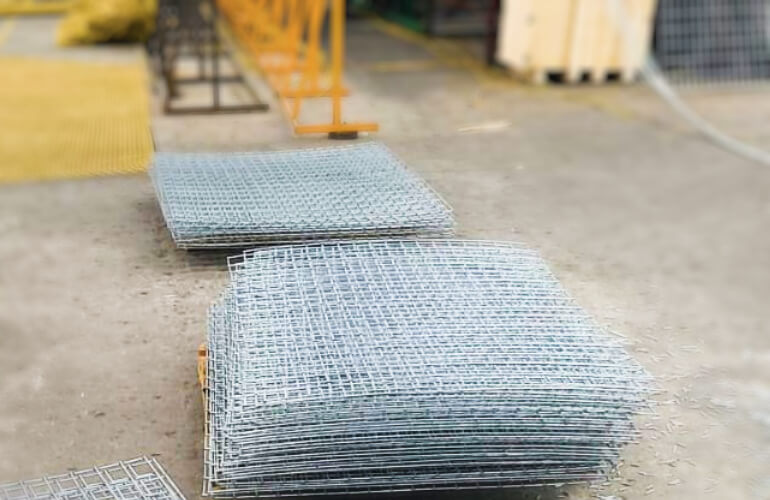

PHOTO GALLERY:
SPECIFICATIONS:
| Opening (Warp x Shoot) | Minimum Width | Maximum Width | Length | Wire Diameter Min | Wire Diameter Max |
|---|---|---|---|---|---|
| 2x2 | 36" ó 3´ | 48" ó 4´ | 3.04mm |
4.94mm |
|
| 2x3 | 36" ó 3´ | 48" ó 4´ | |||
| 2x4 | 36" ó 3´ | 48" ó 4´ | |||
| 2x5 | 36" ó 3´ | 48" ó 4´ | |||
| 4x2 | 40" | 84" ó 7´ | |||
| 4x3 | 40" | 84" ó 7´ | |||
| 4x4 | 40" | 84" ó 7´ | |||
| 4x5 | 40" | 84" ó 7´ |
